Use OvisLink Headset on NEC
UNIVERGE SV9100 DT310, DT330, DT410, DT430, DT530, DT710, DT730, DT800, DT920 Phone

Setup OvisLink headset with NEC UNIVERGE SV9100 DT310, DT330, DT530, DT710, DT730, DT800, DT920 PhoneNEC DT800 does not have predefined headset key. In order to use a headset with the phone, you need to program a headset key use one of the programmable keys. Following is the instruction. (This instruction is also for NEC DT300, DT400, DT500 and DT900 series phones.)

Fine an available programmable key:

  1. Press the "Help" button
  2. Press a programmable key you would like to use as the headset key
  3. If "Not define" displays no the screen, the key is available
  4. Press "Exit" button to exit

Program the headset key:

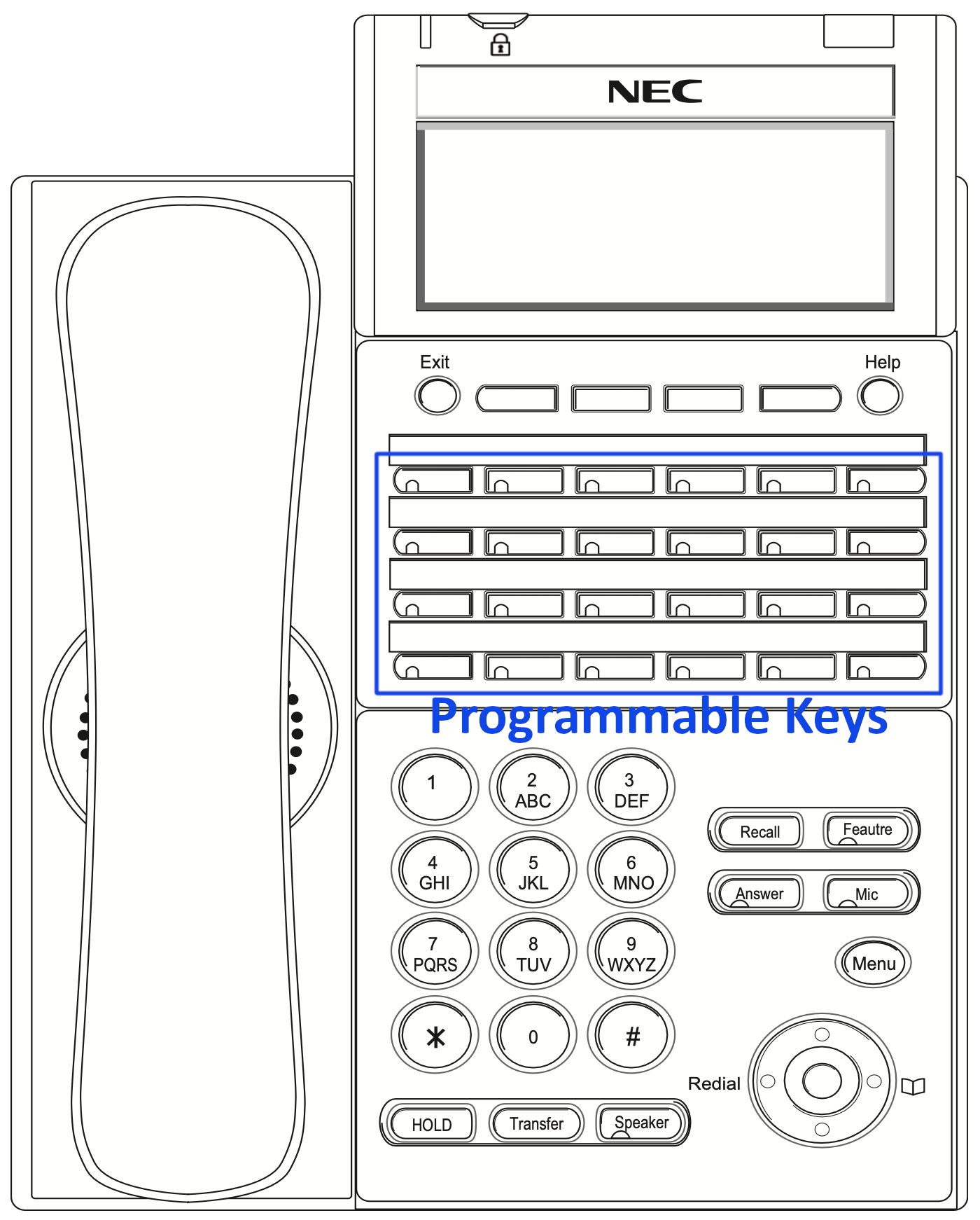

    NEC DT730, DT800, DT920 Phone keypad layout
  1. Press "Speaker" button
  2. Key in "7, 5, 1"
  3. Screen display "Key program"
  4. Press the key you want to use as the headset key
  5. It should display "Not define" on the screen
  6. Press "0, 5", you should hear tones and the word "Headset" display on the screen
  7. Press the "Speaker" key to exit

To make sure if the headset key programmed:

  1. Press the "Help" button
  2. Press the key you just programmed
  3. It should display "Headset" instead of "Not define"
  4. Press "Exit" button to exit.
